Correspondence-driven plane-based M3C2 (PBM3C2) with pre-segmented planes
Implemented in: py4dgeo.pbm3c2
Author(s) of the method Vivien Zahs, Lukas Winiwarter, Bernhard Höfle (Heidelberg University)
Original publication of the method Zahs, V., Winiwarter, L., Anders, K., Williams, J.G., Rutzinger, M. & Höfle, B. (2022): Correspondence-driven plane-based M3C2 for lower uncertainty in 3D topographic change quantification. ISPRS Journal of Photogrammetry and Remote Sensing, 183, pp. 541-559. DOI: 10.1016/j.isprsjprs.2021.11.018.
Method description
In this notebook, we present how the Correspondence-driven plane-based M3C2 (PB-M3C2, [Zahs et al., 2022] algorithm for point cloud distance computation using the py4dgeo package.
The concept and method of PBM3C2 are explained in this scientific talk:
In the current implementation of PBM3C2, a plane segmentation outside py4dgeo (e.g., using CloudCompare or other tools) is required. As PB-M3C2 is a learning algorithm, it requires user-labelled input data in the process, which can be created in graphical software, such as CloudCompare.
[1]:
import py4dgeo
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from py4dgeo.util import find_file
Numba is not installed.
Use `pip install numba` to install it to enable faster computations in Vapc.
You can run py4dgeo.Vapc without Numba, but it may be slower.
In this notebook, we use a dataset of synthetic planes, which is downloaded from the py4dgeo data repository:
[2]:
# Fetch original test data
test_filename = "pbm3c2.zip"
original_file = find_file(test_filename)
print(f"File downloaded to: {original_file}")
File downloaded to: /home/docs/.cache/py4dgeo/pbm3c2.zip
We are reading the two input epochs from XYZ files which contain a total of four columns: X, Y and Z coordinates, as well a segment ID mapping each point to a plane and normal vector components in X, Y and Z. The read_from_xyz functionality allows us to read additional data columns through its additional_dimensions parameter. It is expecting a dictionary that maps the column index to a column name.
[3]:
epoch0 = py4dgeo.epoch.read_from_xyz(
find_file("epoch0.xyz"),
additional_dimensions={3: "segment_id", 4: "N_x", 5: "N_y", 6: "N_z"},
delimiter=" ",
)
epoch1 = py4dgeo.epoch.read_from_xyz(
find_file("epoch1.xyz"),
additional_dimensions={3: "segment_id", 4: "N_x", 5: "N_y", 6: "N_z"},
delimiter=" ",
)
[2026-02-26 08:10:59][INFO] Reading point cloud from file '/home/docs/.cache/py4dgeo/extracted/pbm3c2/epoch0.xyz'
[2026-02-26 08:10:59][INFO] Reading point cloud from file '/home/docs/.cache/py4dgeo/extracted/pbm3c2/epoch1.xyz'
The point cloud data we use here consists of 100 planar segments, with 70 used for training and 30 for application.
[4]:
n_planes = 100
n_train = int(0.7 * n_planes)
train_ids = np.arange(n_train)
apply_ids = np.arange(n_train, n_planes)
We instantiate an instance of the algorithm class. Here, you can set the registration error for the input point clouds.
[5]:
alg = py4dgeo.PBM3C2(registration_error=0.01)
The algorithm requires the user to provide a labeled training dataset correspondences_file to learn how to match the segments. This csv file contains three columns: the first two are the plane segment_id from epoch 1 and epoch 2, and the third is a label (1 for a correct match, 0 for an incorrect one).
Here is an example of the correspondences_file structure:
[6]:
training_sample = pd.read_csv(find_file("epoch_extended_y.csv"), header=None, nrows=3)
print("Training correspondence file structure (first 3 rows):")
print(training_sample.to_string(index=False, header=False))
print("\nFormat explanation:")
print(" - Column 0: Segment ID from epoch 0")
print(" - Column 1: Corresponding segment ID from epoch 1")
print(" - Column 2: Label (1 = correct match, 0 = incorrect match)")
Training correspondence file structure (first 3 rows):
0 100 1
1 101 1
2 102 1
Format explanation:
- Column 0: Segment ID from epoch 0
- Column 1: Corresponding segment ID from epoch 1
- Column 2: Label (1 = correct match, 0 = incorrect match)
[7]:
correspondences_df = alg.run(
epoch0=epoch0,
epoch1=epoch1,
correspondences_file=find_file("epoch_extended_y.csv"),
apply_ids=apply_ids,
search_radius=5.0,
)
============================================================
PBM3C2 Processing Pipeline
============================================================
[1/6] Preprocessing epochs and correspondences...
Assigning globally unique segment IDs...
Epoch 0: 100 unique segments (range: 0.0-99.0)
Epoch 1: 100 unique segments (range: 100.0-199.0)
Assigned new IDs for Epoch 0: 1 to 100
Assigned new IDs for Epoch 1: 101 to 200
Remapped 139 correspondence pairs to new ID scheme
Preprocessing complete.
[2/6] Loading and processing segments...
Loaded 100 segments from epoch 0, 100 from epoch 1
[3/6] Extracting geometric features...
Computed metrics for 100 + 100 segments
[4/6] Training Random Forest classifier...
Classifier trained on 139 pairs
[5/6] Finding correspondences...
[6/6] Calculating M3C2 distances and uncertainties...
[Final] Mapping results back to original segment IDs...
============================================================
Processing complete! Found 30 matches
============================================================
[8]:
print(correspondences_df.head())
epoch0_original_id epoch1_original_id epoch0_segment_id \
0 70.0 170.0 71
1 71.0 171.0 72
2 72.0 172.0 73
3 73.0 173.0 74
4 74.0 174.0 75
epoch1_segment_id distance uncertainty
0 171.0 0.091296 0.011290
1 172.0 0.132205 0.011429
2 173.0 0.300687 0.011440
3 174.0 0.369171 0.011403
4 175.0 -0.294675 0.011339
[9]:
distances = correspondences_df["distance"]
uncertainties = correspondences_df["uncertainty"]

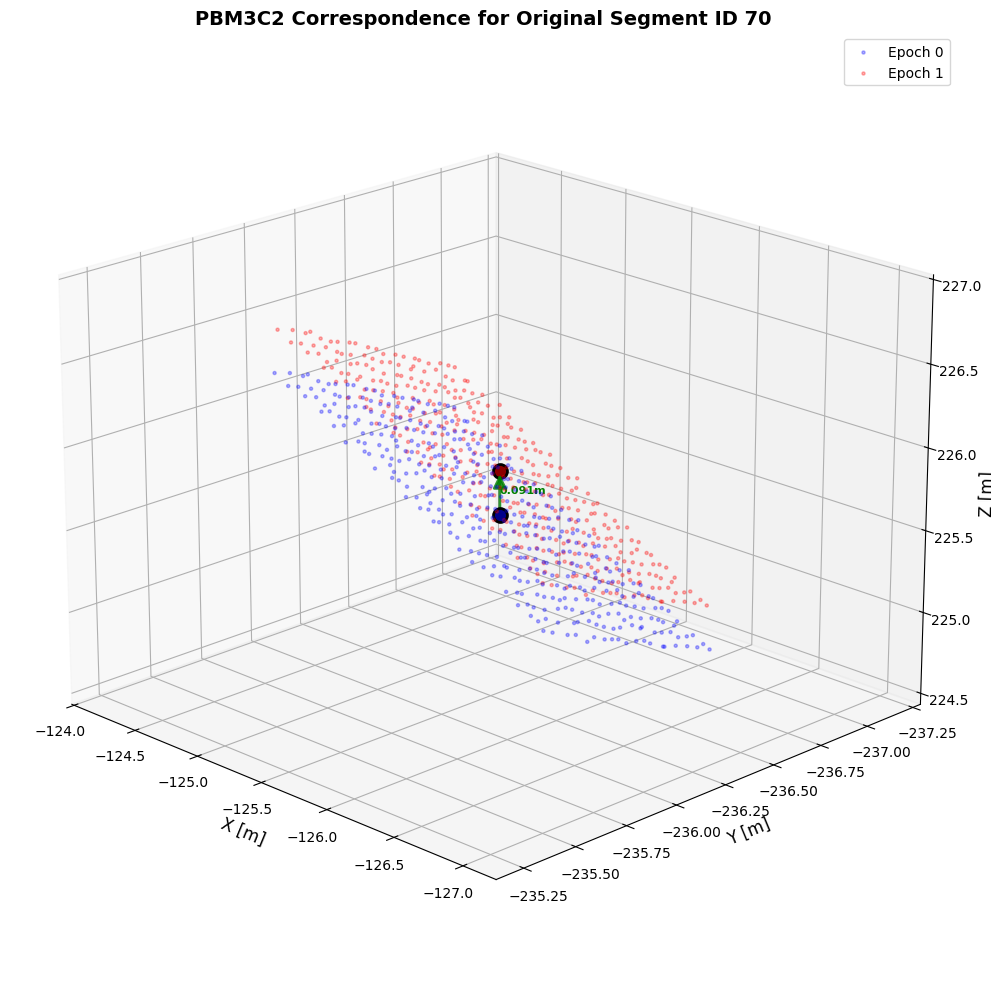

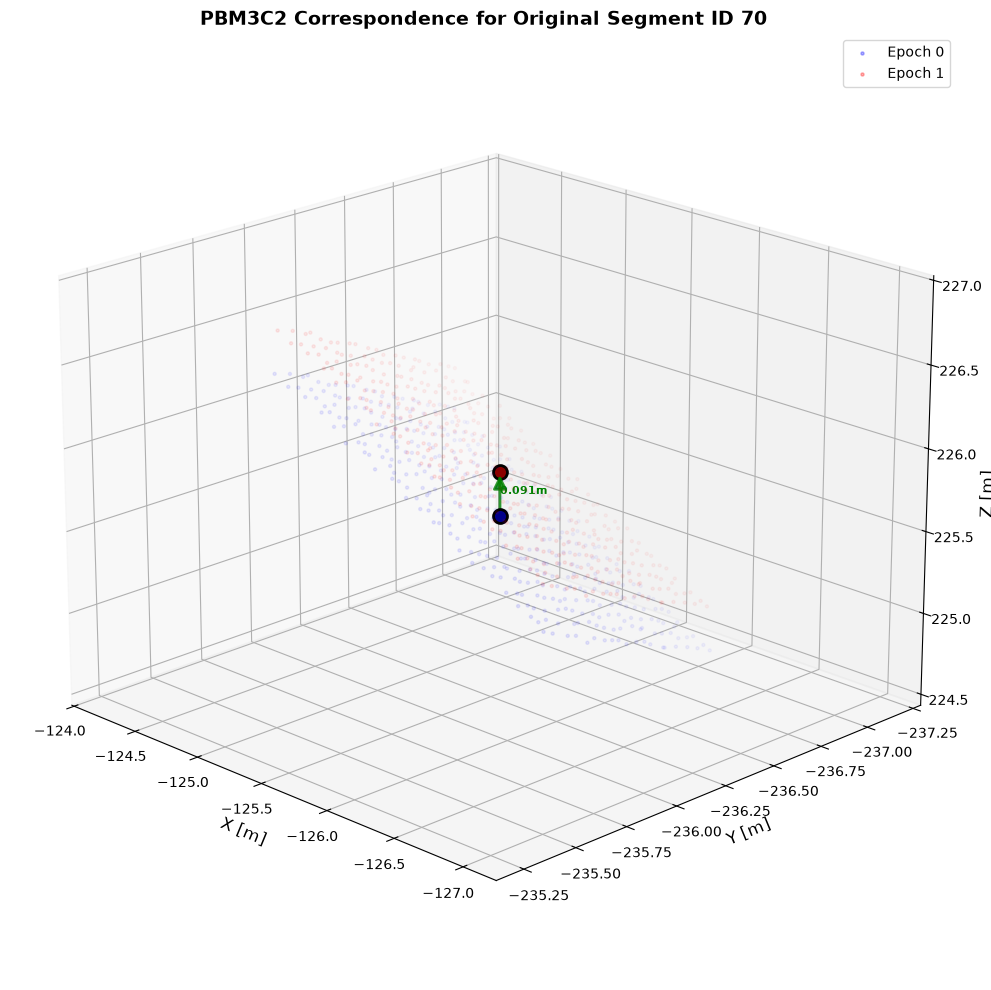

We can visualize the matched plane correspondences and their spatial relationships:
The visualize_correspondences function includes parameters to control its plotting behavior, offering the following options: pinpoint a single epoch0_segment_id for detailed zoom-in display; enable the show_all=True option to render all content; or directly use the default random num_samples value for a quick preview.
[10]:
fig, ax = alg.visualize_correspondences(epoch0_segment_id=70, elev=20, azim=135)
plt.show()
References
Zahs, V., Winiwarter, L., Anders, K., Williams, J.G., Rutzinger, M. & Höfle, B. (2022): Correspondence-driven plane-based M3C2 for lower uncertainty in 3D topographic change quantification. ISPRS Journal of Photogrammetry and Remote Sensing, 183, pp. 541-559. DOI: 10.1016/j.isprsjprs.2021.11.018.
